FLOW2000 SDI&HDMI® 2000ft/600m Wireless System

›  KUWI 5.1-5.9GHz Wireless Technology

›  DFS Comply

›  3GSDI & HDMI®, with 3GSDI loop out

›  2000ft/600m (Line-of-Sight) distance

› 32ms stable low latency

›  Strong Wall-Cross Performance

›  2-ch SDI/HDMI® audio transmission

›  OLED info and channel switching

›  Support up to 22 pairs working in one location

›  Multicast - 1 transmitter to unlimited receivers

›  Wireless protocol & content double encryption

›  Reclock and accurate color reproduction

Features

KUWI Wireless Technology

SDI&HDMI® 2000ft / 600m (LOS)

FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI® (Max 1080p60) to transmit 2000 feet (600 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director moni- toring, drone, ropeway camera, steadicam etc.

Input & Output

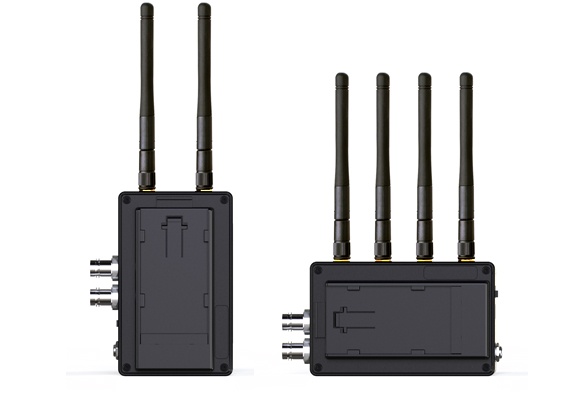

The Transmitter (Tx) has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI® 1.3 input

The Receiver (Rx) has 4 omni antennas, supports
2x 3G/HD-SDI output
1x HDMI® 1.3 output

SDI & HDMI® formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

2000ft/600m Transmission

Strong Wall-cross Performance

FLOW2000 wireless supports 2000ft/600m (Line-of-sight) reliable wireless transmission, and featured stron- ger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video trans- mission without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports SDI & HDMI® embedded audio (CH1&2) transmission.

OLED Display & Channel Switch

DFS Comply

The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all fre- quencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels manually from 7 Non-DFS restricted channels.
Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.

Multicast and Double Encryption

Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypt- ed by private transmission protocol and by AES128, in order to protect the footages.

Stable Connection at Worst Wireless Environment

The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.



Reclock & Color Reproduction

To ensure the quality of black level, signal noise and color re- production of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate color reproduction.

USB Firmware Update

The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions.

Power Supply

The power consumtion of Tx and Rx are less than 8W. Both Tx and Rx provide NP-F DV battery plate, and 7-34V lockable DC input.

Input / Output

Transmitter

3G/HD-SDI input×1, loop output ×1



HDMI® 1.3 input×1

Receiver

3G/HD-SDI output×2



HDMI® 1.3 output ×1

Video Formats

SDI

1080p60, 1080p59.94, 1080p50

1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

HDMI®

1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50

Wireless

Frequency

5.17GHz-5.69GHz and 5.75GHz-5.83GHz

RF Modules

OFDM 16QAM, 64QAM, QPSK, BPSK

RF Power

128mW

Transmission Distance

2000 feet / 600 meters (Line of sight)

General

Input voltage



Transmitter DC 7-34V

Receiver DC 7-34V

Power Consumption



Transmitter 8W
Receiver 8W

Dimension(w/o antenna)



Transmitter 66×106.5×24.7 (mm)
Receiver 106.5×66×24.7 (mm)

Net weight



Transmitter 236g
Receiver 245g; With package 2.6kg

Working Temperature

0°C -+40°C
Basic Package

1TX to 1Rx Package

MSRP

1TX to 2RX Package

MSRP

MSRP

  • AC-DC adaptor

  • FLOW2000 1x Transmitter 1x Receiver

  • D-tap to lockable Pole-tap cable

  • Cold shoe and 1/4" Arm Trestle

  • Carrying case

  • FLOW2000 1x Transmitter 2x Receiver

  • Cold shoe and 1/4" Arm Trestle

  • D-tap to lockable Pole-tap cable

  • AC-DC Adaptor x2

  • Carrying Case

  • Antenna WA-A02

    Spare omni antenna for FLOW2000, both Transmitter and Receiver
  • S-7114

    D-tap to lockable 5.5/2.1mm pole-tap cable, connect with battey D-tap socket and power the wireless transmitter or receiver.
  • AC-DC Adaptor PD-A12K

    AC to lockable 5.5/2.1mm pole-tap DC adaptor, to power transmitter or receiver.
  • FLOW500

    SDI&HDMI® 500ft/150m Wireless System

    3GSDI & HDMI® transmission, 150 meters (LOS), Strong Wall-cross, OLED info, DFS comply.

  • FLOW6500

    SDI&HDMI® 6500ft/2km Wireless System

    Panel Receiver 5GHz DFS comply, Strong Wall-cross, OLED info

  • FLOW10K

    SDI&HDMI® 10000ft/3km Wireless System

    Panel Receiver 5GHz DFS comply, Strong Wall-cross, OLED info

  • CURVE500+

    HDMI®500ft/150m Wireless with USB capture

    USB Video Capture for PC/Mac livestreaming, 5GHz DFS comply, NOT WIFI, Reliable and Strong Wall-cross
