› Chip on board COB LED technology
› 23W, 1800Lux @ 1 meter, dimmerable
› 100W equivalent output
› Single shadow, glareless
› 60° wide beam angle, equally spread
› Cool touch
› 5000K color temperature
› 5600K and 3200K filter
› 6-17V wide input voltage
› Interchangeable DV mount and battery
› Screw and cold shoe mount
Chip-on-board LED
Brighter and Non-glaring
The S-2041 on-camera LED light adopts the new
generation Chip-on-board LED,
which integrates the LEDs into a chip with high
brightness output but in smaller size, and the most
remarkable, it offers a equally spread, soft, glareless
light, similar to the traditional Halogen bulb light.
23W Light Output, 100W Equivalent
1800 Lux @ 1 meter distance and 1 meter scale
S-2041 feeds 23W light output, and equivalent to an 100W
halogen bulb. The illuminance is 1800 Lux at 1 meter distance
and 1 meter scale.
Wider Beam Angle
Equally spread lights, no visible beam edge
The traditional LED lights use lens to converge and get a higher brightness, but dropped down quickly around, which will generate a
visible lighting border in the image.
In comparison, the COB LED generates a wider beam angle, equally spread from the center to edge, and suitable for HD shooting.
Glareless light, Single Shadow
The traditional LED array always generates several highlight pots on retina and people will feel glaring, even can’t recover sight until a
few seconds. In comparison, the SWIT Chip-on-board LED has only one bulb in appearance, and output a glareless, single shadow light,
suitable for close interview shooting.
3200K/5000K/5600K Color Temperature
The S-2041 LED has 5000K color temperature and also equipped with a 5600K (Daylight) and a 3200K (Tungsten) color temperature
filter. You can switch the color temperature easily.
6-17V Wide Voltage Power Supply
The S-2041 accepts 6-17V wide voltage input, so you can get power from 14.4V V-mount/Gold Mount batteries or 7.2V DV batteries.
The light package goes with a D-tap to pole-tap cable (S-7104), to plug into the DC-IN port of S-2041 and get power from D-tap power
output sockets, such as batteries, battery plates, or camera handle.
You can also directly mount a 7.2V DV battery onto the rear of S-2041, by the particular battery plate.
Interchangeable DV plates
You can power the S-2041 by most popular DV batteries,
via the easy interchangeable DV battery plates. We supply
the following DV plates for optional:
S-7004F | SONY NP-F970/770 |
S-7004U | SONY BP-U60/U30 |
S-7004D | Panasonic CGA-D54/D28 VW-VBD58 AG-VBR59 |
S-7004B | Panasonic VW-VBG6 |
S-7004J | JVC BN-V428U |
S-7004V | JVC BN-VF823 |
S-7004I | SSL-JVC50 |
S-7004C | Canon BP-945/970G |
S-7004E | Canon LP-E6 |
Input voltage | DC 6V-17V |
Power consumption | 23W |
Halogen equivalent | 100W |
Beam Angle | H60°/ V60° |
Color temperature | 5000K and 5600K/3200K switchable |
Color rendering index | 85 |
Illuminance | 1800Lx @ 1m distance and 1m diameter scale |
Power connector | D-tap cable, DV mount connection |
Dimensions | 103×157×84mm |
weight | Net 400g; With package 0.95kg |
MSRP
MSRP
MSRP
-
S-7108
DC cable with both ends of 5.5mm Pole-tap connector -
S-7004F
SONY NP-F DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004U
SONY BP-U DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004D
Panasonic CGA/VBD DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004B
Panasonic VBG DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -

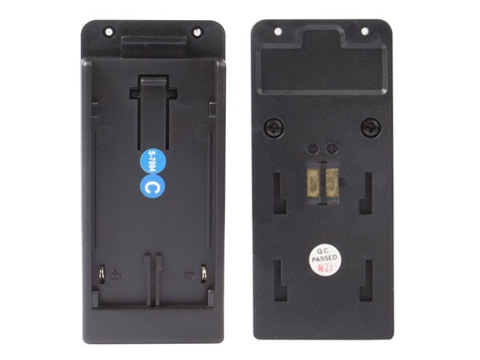

S-7004C
Canon BP DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004E
Canon DSLR Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004i
JVC SSL DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004V
JVC BN-VF DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
-
S-2060
COB LED On-camera Light
30W, Chip-on-board LED, brighter, wider beam angle, non-glaring; 1500Lux@1m, with 5000Lux focus lens, 2800K-6000K continuously adjustable
-
S-2070
COB LED On-camera Light
COB LED in smaller size for Camcorder, low power consumption, brighter, wider beam angle, non-glaring; 1100Lux, 5600K / 3200K filter; DV batteries attachable.
