› Square shape design for Cine-cameras
› At least 200W, 16A constant load
› 4× D-tap output sockets
› 1× USB 5V/2A power output sockets
› 6A super fast charging
› OLED display accurate remaining run time
› Display power info in both SONY & RED
› Multiple circuit protections
![](https://www.swit.cc/uploads/image/PB-S220S/PB-S220S-5.jpg)
![](https://www.swit.cc/uploads/moimage/mPB-S220S/PB-S220S-5.jpg)
Square shape design for Cine-cameras
PB-S series camera batteries are compact
designed, shorter than normal V/Gold
mount batteries, and match perfectly with
most of the Cine-cameras.
![](https://www.swit.cc/uploads/image/PB-S220S/PB-S220S-6.jpg)
![](https://www.swit.cc/uploads/moimage/mPB-S220S/PB-S220S-6.jpg)
220Wh / 15.3Ah Capacity
Consists of 24pcs of high class 18650 battery cells, nominal
voltage is 14.4V and reaches 220Wh / 15.3Ah high capacity.
Can run approx 7 hours for normal ENG cameras and approx
2.5 hours for ARRI ALEXA.
![](https://www.swit.cc/uploads/image/PB-S220S/PB-S220S-7.jpg)
![](https://www.swit.cc/uploads/moimage/mPB-S220S/PB-S220S-7.jpg)
High Load for Cine Cameras
At least 200W / 16A load
PB-S220S provides at least 200W/16A high load
even at 1% capacity, to drive high power Cine cameras and on-camera devices together. The high
load cells will also ensure battery life comparing to
normal load batteries if long time full load output.
![](https://www.swit.cc/uploads/image/PB-S220S/PB-S220S-8.jpg)
![](https://www.swit.cc/uploads/moimage/mPB-S220S/PB-S220S-8.jpg)

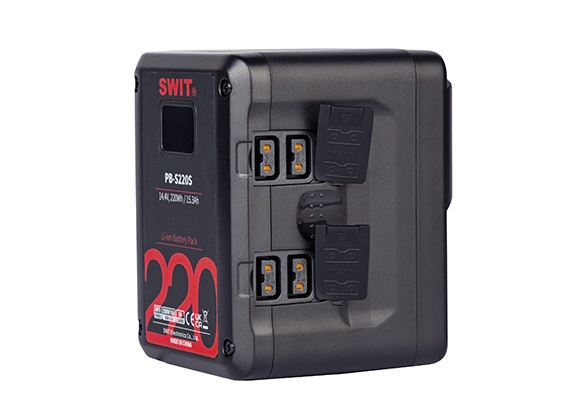

4× D-tap, 1× USB
PB-S220S provides 4x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.
![](https://www.swit.cc/uploads/image/PB-S220S/PB-S220S-9.jpg)
![](https://www.swit.cc/uploads/moimage/mPB-S220S/PB-S220S-9.jpg)
6A Super Fast Charging
Using SWIT super fast charger
PB-S220S supports 6A fast charging by SWIT
S-3812S or PC-P461S fast charger, to save up to 60%
charging time. The 220Wh PB-S220S battery can be
charged from 0 to 80% after 2.3 hours, and fully
charged within 3.5 hours.
![](https://www.swit.cc/uploads/image/PB-S220S/PB-S220S-10.jpg)
![](https://www.swit.cc/uploads/moimage/mPB-S220S/PB-S220S-10.jpg)
Digital Power Info
OLED display accurate remaining run time
The build-in OLED can displays remaining power percentage, remaining working time, and battery cycle times, and
support viewfinder info display on both SONY and RED cameras.
![](https://www.swit.cc/uploads/image/PB-S220S/PB-S220S-11.jpg)
![](https://www.swit.cc/uploads/moimage/mPB-S220S/PB-S220S-11.jpg)
Battery Protection Display
When any over load, over charging, short circuit, high/low temperature detected, the battery will protect itself and display protection information. You can take steps to re-active battery, to ensure the best battery condition and prolong battery life.
Model | PB-S220S |
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 220Wh,15.3Ah |
Max output | In total: 200W |
Electrodes: 200W,16A | |
USB:10W, 5V/2A | |
D-tap: 120W / 10A | |
Dimension | 121×95×96mm |
Charging Temperature | 0-40°C |
Discharging Temperature | -20°C-50°C(Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 1.44kg; With package 1.55kg |
Max charging current | 6A |
D-TAP socket number | 4 |
USB socket number | 1 |
