› Tiny V-mount battery, Pocket fit
› 98Wh/6.8Ah fly-friendly capacity
› 150W/12A constant high load
› 1x D-tap output & charging input
› 1x USB 5V/2A output
› 5-step LED power indicator
› Power info for both SONY & RED
› Wire-Free internal technic
› Multiple circuit protections
Tiny V-mount battery
Pocket fit size
The brick size V-mount batteries are always too big and
heavy for field shootings, especially the handheld stabi-
lizers, focus puller monitor, portable LED panel, or small
cameras.
PB-M98S Pocket V-mount battery is designed for the
above applications!
It’s only a DV battery size, with high capacity cells and
still reaches 98Wh, and without any compromise on the
DC sockets!
98Wh Fly Friendly
150W/12A constant high load
PB-M98S consists of 8pcs of high class 18650 battery
cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah
high capacity. You can take this battery in carry-on luggage to board airplane.
The Constant load is as high as 150W, 12A, applicable for high power devices.
Built-in D-tap and USB
The pocket size PB-M98S still has D-tap
and USB sockets built-in.
The D-tap socket has 100W/8A load and support
charging input by SWIT PC-U130B2 dual
D-tap charger.
The USB socket outputs 5V/2A for smart
phone fast charging.
5-LED Power Indicator
Low battery warning
PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will
flash automatically to remind changing battery.
3A Fast Charging
PB-M98S can be charged by all standard V-mount chargers and D-tap chargers.
Max charging current is 3A.
The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M98S: Approx. 3 hours
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M98S: Approx. 3 hours
Charge 2x PB-M98S: Approx. 5 hours and 15 minutes
Hot-Swap Adaptor
You can use 2x PB-M98S hot-swapable on cam eras, by the Hot-swap Adaptor KA-M20S, to get
a long time, uninterrupted power, and equivalent
to a standard size V-mount battery.
Wire-Free Internal Tech
PB-M98S has innovative “Wire-Free” internal technic.
All the cells, D-tap, USB, power indicator devices are
directly soldered onto PCB, no connecting wires, to
reduce internal resistance effectively, and make the
circuit stable, safe, and reliable.
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 98Wh, 6.8Ah |
Max output | In total: 150W |
Electrodes: 150W, 12A | |
| USB:10W, 5V/2A | |
| D-tap: 100W / 8A | |
Dimension | 100×74×48mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Net 0.51kg; With package 0.55kg |
Max charging current | 3A |
MSRP
MSRP
MSRP
-
KA-M20S
Dual Pocket V-mount Batteries Hot Swap Plate, Installed with 2x PB-M series batteries, and the KA-M20S plate can draw the 2 batteries one-by-one as hot swap mode, or use together as high load mode.
-
PB-S98S
98Wh Multi-sockets Square Digital Battery Pack
Compact designed for Cine-cameras, 150W high load, 2x D-tap, 1x USB, OLED displays remaining time.
-
S-8082S
95Wh V-mount Battery Pack
Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators
-
PC-P430S
4-ch V-mount Fast Charger
3A×4 fast charging current; AC-DC adapter output, LED charging indicators
-
PC-U130B2
Portable Dual D-tap Heads Fast Charger
Ultra portable 3A charging via battery D-tap sockets
-
PC-U130B
Portable D-tap Socket Fast Charger
Ultra portable single channel 3A charging via battery D-tap socket
-
S-3822S
2-ch V-mount Fast Charger
2-ch simultaneous charging, 3A fast charging, Portable, support AC-DC adaptor output
-
S-7005S
Gold mount to V-mount battery Adaptor
Adapt V-mount batteries to Panasonic gold mount cameras; D-tap DC socket
-

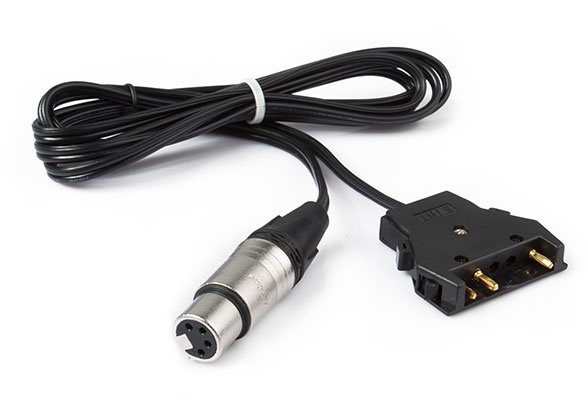

S-7100S
