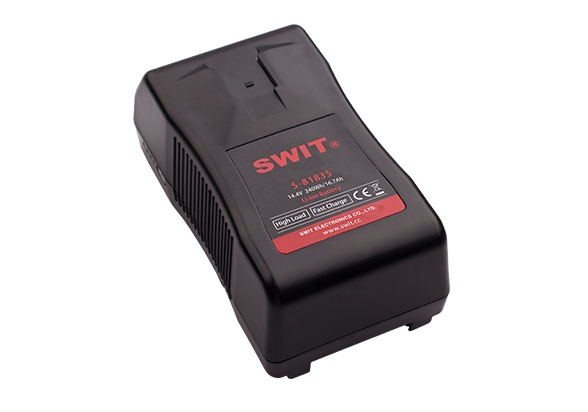

S-8183S 240Wh High Load V-mount Battery Pack
› High-load Li-ion cells
› At east 250W, 20A constant load
› 14.4V, 240Wh capacity
› D-tap output socket
› 4-level LED power indicator
› V-mount connection
› Multiple circuit protections
High-Load Li-ion Cells
At least 250W, 20A constant power output
Normal Li-ion batteries offer 100W/8A output and suitable for most
ENG cameras, but the Cine Cameras such as ALEXA require around
85W high draw which is too heavy for the normal Li-ion batteries: the
battery life will be reduced if long time full draw powering. Moreover,
if there’re monitor, lighting work together, and total power will be
above 100W, and the normal batteries can not draw completely.
Using S-8183S high-load battery, you can get at least 250W/20A con stant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life
during long time high power output.
240Wh/16.7Ah High Capacity
Consists of 24pcs 18650 battery cells, and reach
240Wh/16.7Ah high capacity.
Can run approx 8 hours for normal 30W ENG cameras;
and approx 2.5 hours for ARRI Alexa camera
6A Fast Charging
S-8183S supports 6A fast charging, to save more
than 50% charging time, can be charged from 0 to
80% after 2.5 hours, and fully charged within 3.8
hours.
Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8183S
battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.
4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power
indicators to check the battery remaining capacity. You
can get a quick view of capacity before using.
Nominal Voltage | 14.4V |
Capacity | 240Wh/16.7Ah |
Max output power | In total:250W |
| Electrodes:250W,20A | |
| D-tap:120W,10A | |
Mount Type | V-mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Approx 1.3kg |
Dimensions | 165×90×66mm |
