› 31.5-inch QLED Panel, 3840×2160 resolution
› 1000nits high bright LED backlight
› 100% DCI-P3 wide color gamut coverage
› VICO 1.97 A-class Eye Protecting LCD
› 12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
› 12GSDI via SFP Fiber input (Optional)
› ST2110 IP via SFP Fiber input (Optional)
› SFP Fiber 12G input converted to 12GSDI out
› 4 inputs Quadview, any 2 inputs PBP/PIP view
› HLG/PQ/S-log3 HDR, Payload ID auto setting
› 3DLUT Auto Self-calibration without PC
› Audio/Video 0 latency for post production
› Built-in Multi camera Delog Luts to 709/HLG/PQ
› User 3DLUTs upload via USB
› Waveform / Vector / Histogram / Eye pattern
› Focus assist / False color / Zebra
› 16-ch audio meters / Lissajous
› 5.1 & 7.1 surround sound phase pattern
› IP webserver remote control
31.5-inch UHD 1000nits HDR
QLED Panel, 100% DCI-P3 WCG
BM-U325HDR adopts a 31.5-inch 10-bit QLED (Quantum Dot LED) panel, UHD 3840×2160 resolution, 1000nits high bright LED backlight for HDR display, 1000:1 contrast, 100% DCI-P3 wide color gamut. The viewing angle is Horizontal: 178° / Vertical: 178°.
Multi 4K/8K Interfaces
12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K HDMI 2.0 (4K60P)
12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)
* The Quadlink 4K/8K supports both SQD and 2SI;
* The SFP optical fiber adaptor is optional purchased.
4K/8K UHD Monitor
Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI / ST.2110 via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs with both SQD and 2SI modes.
Quadview, PBP, PIP
You can also input 4x independent 4K inputs for quadview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and
waveform, vector, HDR/SDR gamma selection, color gamut selection, and UMD displays for each input window.
Beside Quadview, you can select any 2 inputs to display Pic-by-Pic or Pic-in-Pic modes for convenient video productions.
VICO 1.97 Eye Protect
The QLED panel has a Quantum Dot layer between LCD screen and
its LED backlight, which changes the LED spectrum to reduce blue
and balance the R/G/B peak, which will stimulate people’ s cone
cells evenly, and reducing visual fatigue effectively.
The VICO (Visual Health and Comfort) testing scores 1.97, A class, to
protect your eyes from long time video editting or broadcast studio
productions.
HLG/PQ/S-Log3 HDR
BM-U325HDR has a native 1000nits high bright backlight LCD panel, and supports HLG (Hybrid Log Gamma), Dolby Vision PQ and SONY S-Log3 HDR monitoring.
HDR EOTF Match
Payload ID Auto Setting
Support input video Payload ID identify and the
monitor will automatically set HDR/SDR EOTFs,
Color Gamut, Input range, Color space and Color
depth according to the Payload ID info.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows
and display different HDR/SDR gamma and
color gamut simultaneously. You can get
correct reference when producing HDR and
SDR together.
3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211
Built-in 3DLUT calibration software, supports X-rite i1
and Jeti Specbos 1211 probes to directly connect with
the monitor USB port.
The monitor generates color patterns and the color
probes read the color, send color info to monitor via USB.
Then the monitor compares the color difference and
generate 3DLUT and calibrate itself automatically.
Calibration time: X-rite i1 15min, Specbos 1211 45min
Calibration result: ∆E≤1.0
Audio/Video Zero Latency
The monitor internal processing latency is less than20 lines against UHD 2160 lines,
which means less than 0.01 frames to considered as zero latency for post productions.
It’ s native zero latency processing, no compromise on video quality.
De-log 3DLuts
User 3DLuts cube upload
The monitor has built-in multi camera
logs to HLG / PQ HDR or 709 SDR
conversion 3DLuts. You can also upload
user creative 3DLuts to monitor by USB
disk, 17x17x17 cube supported.
Multiple Video Analysis Patterns
Audio Patterns
BM-U325HDR supports 16-ch embedded
audio meters display, and select any 2
channels audio to output via speaker or
3.5mm headphone socket;
And displays Lissajous pattern and 5.1&7.1
surround sound patterns for 4K productions.
Eye Pattern
Built-in eye pattern to check input video transmission
quality via SDI cable, especially the 12GSDI quality.
Webserver IP Remote Control
BM-U325HDR supports webserver remote control by
Ethernet LAN connection.
Use computer web browser to open the monitor
control panel, and select input sources, adjust picture
parameters, set up video / audio functions and assign
function keys, etc, without install any APP.
LCD Performance
Size | 31.5 inches |
Display area | 697.3×392.2mm |
Resolution | 3840×2160 |
Aspect ratio | 16:9 |
Brightness | 1000nits |
Contrast | 1000:1 |
Color depth | 1.073G colors, 10-bit |
Signal process | 18-bit |
Viewing angle | 178°(H) /178°(V) |

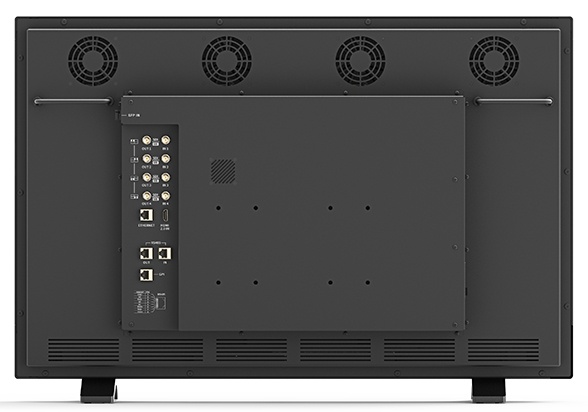

Input
BNC ×4 | 12G/6G/3G/HD/SD-SDI input |
HDMI ×1 | HDMI 2.0 input |
SFP ×1 | Optical Fiber input (By optional SFP adaptor) |
RS485 ×1 | TSL 3.1/4.0 UMD input |
RS485 ×1 | GPI (Tally) input |
RJ45 ×1 | 1000M Ethernet input for Webserver IP control |
Output
BNC ×4 | 12G/6G/3G/HD/SD-SDI loop output |
RS485 ×1 | TSL 3.1/4.0 UMD output |
Analog audio | 3.5mm headphone and speaker |
Video Format
SDI 1/2/3/4 | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
Quad Link 4K (Each channel) | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
Quad Link 8K (Each channel) | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
HDMI | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
General
Input voltage | AC 100-240V, 50/60Hz |
Power consumption | ≤ 200W |
Working temperature | 0°C～+50°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 753.5×490×110.1mm |
Net weight (main body) | Net 16kg; With package 21.6kg |
