› 700W RGB + 700W Warm + 700W Cold LEDs
› Time-Division drive, 100% power color lights
› 2×1' size, 20000Lux @ 1meter
› Only 40dB sleeping silent
› IEC 62471 Photobiological Safety certificate
› 2800K-10000K, G/M±1.00 adjustment
› CRI Ra 95, TLCI 95, SSI(D55) 75
› CCT/HSI/RGB/CIE/GEL/EFF color modes
› 20x Rosco and 20x LEE Gels
› 3.5-inch color LCD visualized color pick
› DMX512 channels settings for various modes
› Built-in Lumenradio CRMX Receiver
› EtherCON Art-Net IP control
› IOS/Android APP bluetooth control
› PowerCON TRUE1 AC in and loop
› 3-Pin XLR DC 48V power input
› Open face accessory quick install
› With diffuser board and 4-leaf barn door
› Optional honeycomb, soft box, Pole-operated Yoke
700W RGBWW Pro Studio Panel
MONET-700, an 2x1 size ultimate 700W high power RGBWW
Studio Panel Light designed for broadcast studios, virtual
studios, live events and film sets, soft and high bright output,
provides with advanced control options and versatile accessory
mounting and power supply for professional setup.
High Bright Soft Diffusing Output
MONET-700 boasts an impressive high illuminance of 20,000 Lux @ 1 meter, makes it an ideal choice for various large-scale studio lighting applications, ensuring that every corner of your set can be sufficiently illuminated.
Full Power R/G/B Color Output
SWIT Patent Tech - CTDM Drive
The ordinary RGB lights can only output 30%-60% power when they are
in color modes.
With SWIT patented - CTDM (Color Light Time Division Multiplexing)
technology, MONET-700 can output 100% full power at any pure R/G/B
colors, 3 times brighter than other RGB panels with the same power.
Control Panel
The rear control panel of MONET-700 provides
multiple power and control interfaces, supports
5-pin DMX in & out, RJ45 Art-Net connection,
USB-A 5V power out and firmware update,
3-pin XLR DC48V power in, PowerCON True1
AC in and out, and a large color LCD with menu
and hot keys for convenient color picking.
On-board 3.5-inch Color LCD
Visualized color selection
DMX, Art-Net, CRMX Receiving
MONET-700 supports DMX-512 in and out, Art-Net IP control over ethernet, and has CRMX Rx Built-in, giving you the flexibility to manage your lighting from various platforms.
Bluetooth APP Control
Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control MONET lights via Bluetooth.
SWIT Console APP
The APP control supports CCT, HSI, RGB, CIE color modes, and select preset color GELs and light effects.
True 1 AC and 48V DC Power
MONET-700 provides PowerCON True1 100-240V AC in and loop out, for chain connection in the studio setup, and a 3-pin XLR DC 48V power input for convenient mobile lighting setup.
Studio Yoke
MONET-700 comes with a studio yoke of
both 5/8” (16mm) baby pin female and
1-1/8” (29mm) junior pin male head, fit
for all kinds of light stands, studio hooks
or pantographs.
Open Face Accessory Mounting
MONET-700 has an open face structure for multiple
accessories, includes diffuser, honeycomb, and 4-leaf
barndoor, of convenient quick-release sliding mounting.
Optional Soft Box
Foldable quick mounting soft box, optional
purchase, illuminance 14,500Lux@1m.
SKU: LA-BX700
LED | 784pcs RGB + 784pcs cold white + 784pcs warm white |
Illuminance | 20,000Lux @ 1m |
Beam angle | 120° (65° half peak) |
Color Temperature | 2800K～10000K, G/M±1.00 |
Color Render | CRI Ra95, TLCI 95, SSI(D55) 75, Rg 106, Rf 96 |
DMX | DMX512, 5-pin XLR IN & OUT |
Art-Net | EtherCON LAN connection |
CRMX | Built-in CRMX Receiver |
USB | USB-A 5V power out & firmware update |
Power | 700W |
AC | PowerCON TRUE1 AC 100-240V 50/60Hz input & output |
DC | 3-pin XLR DC 48V input |
Dimension | 641×354×170mm |
Lighting area | 583.4×316mm |
Weight | Net 15.2kg |
MSRP
MSRP
MSRP
-
Safety rope ×2
-

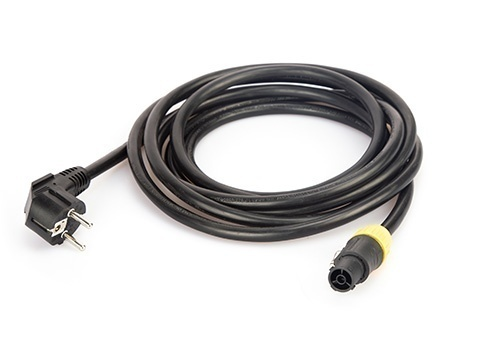

PowerCON TRUE1 AC cable
-
Diffuser board
-
Barn door kit
-
PA-LC20
PowerCON TRUE1 loop out cable, 2meters, 16A load -
LA-POM700
2 control cups for pan and tilt, 5/8" baby-pin female & 1-1/8" junior pin male head. -
LA-BX700
Softbox diffuser, 14500Lux@1m on MONET-700 -
LA-G700
40° HoneyComb, quick slide install with diffuser board or barn door kit.
-
