PB-M45S 45Wh Pocket V-mount Battery Pack

› Tiny V-mount battery, Pocket fit

› 45Wh/3.1Ah fly-friendly capacity

› Max 150W/12A constant load

› 1x D-tap output & charging input

› 1x USB 5V/2A output

› 5-step LED power indicator

› Power info for both SONY & RED

› Wire-Free internal technic

› Multiple circuit protections


Features

Tiny V-mount battery

Pocket fit size

The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabi- lizers, focus puller monitor, portable LED panel, or small cameras.
PB-M45S Pocket V-mount battery is a perfect solution!
It’s only a DV battery size, 45Wh capacity, and without any compromise on the DC sockets!

45Wh Fly Friendly

150W/12A constant high load

PB-M45S consists of 4pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 45Wh / 3.1Ah high capacity. You can take this battery in carry-on luggage to board airplane.
The Constant load is as high as 150W, 12A, applicable for high power lightings.

Built-in D-tap and USB

The pocket size PB-M45S still has D-tap and USB sockets built-in. The D-tap socket share 100W/8A load DC output with the V-mount pins, and support charging input by SWIT PC-U130B2 dual D-tap charger.
The USB socket outputs 5V/2A for smart phone fast charging.

5-LED Power Indicator

Low battery warning

PB-M45S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.

3A Fast Charging

PB-M45S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A. The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M45S: Approx. 75 min
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M45S: Approx. 75 min
Charge 2x PB-M45S: Approx. 2 hours

Hot-Swap Adaptor

You can use 2x PB-M45S hot-swapable on cam- eras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.

Wire-Free Internal Tech

PB-M45S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

Battery plate

V-mount

Nominal voltage

14.4V

Capacity

45Wh, 3.1Ah

Max output

In total: 150W

Electrodes: 150W, 12A

USB:10W, 5V/2A
D-tap: 100W / 8A

Dimension

100×74×34mm

     Charging Temperature0-40°C
     Discharging Temperature-20°C-50°C(Capacity and Max Load may decrease when operating below 0°

Net weight

0.31kg

Max charging current

3A
Basic Package

MSRP

€149

MSRP

MSRP

  • PB-M98S

    98Wh Pocket V-mount Battery Pack

    Pocket fit tiny V-mount battery, built-in D-tap and USB, 150W load.

    €279
  • PB-S98S

    98Wh Multi-sockets Square Digital Battery Pack

    Compact designed for Cine-cameras, 150W high load, 2x D-tap, 1x USB, LCD displays remaining time.

    €159

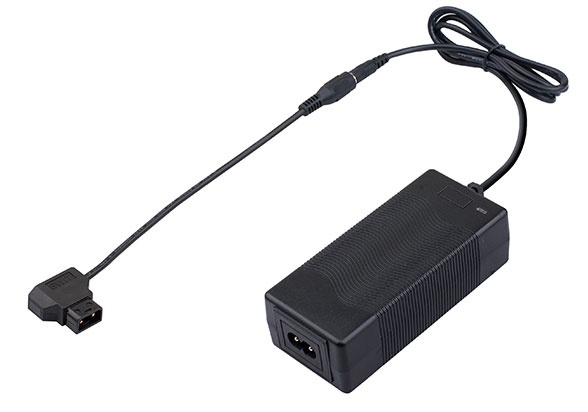

  • PC-U130B2

    Portable Dual D-tap Heads Fast Charger

    Ultra portable 3A charging via battery D-tap sockets

    €109

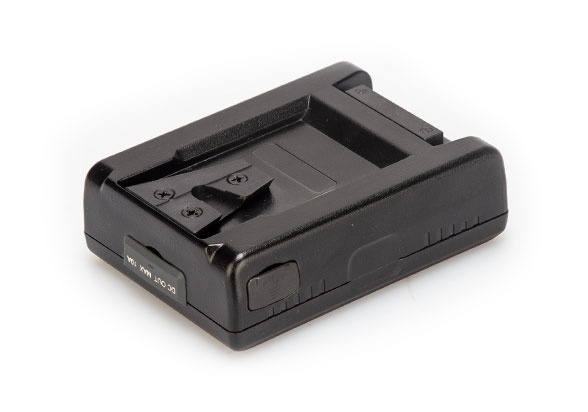

  • PC-U130S

    Portable V-mount Battery Charger

    Ultra portable single channel 3A charging, attached to V-mount battery pins

    €99
  • PC-U130B

    Portable D-tap Socket Fast Charger

    Ultra portable single channel 3A charging via battery D-tap socket

    €99
  • S-3822S

    2-ch V-mount Fast Charger

    2-ch simultaneous charging, 3A fast charging, Portable, support AC-DC adaptor output

    €340
  • SC-302S

    2-ch V-mount Sequential Charger

    Sequential charging; Portable style

    €199
  • KA-M20S

    Dual Pocket V-mount Batteries Hot Swap Plate

    Install 2x PB-M Pocket V-mount batteries, for long time power output and hot swap.

    €299
